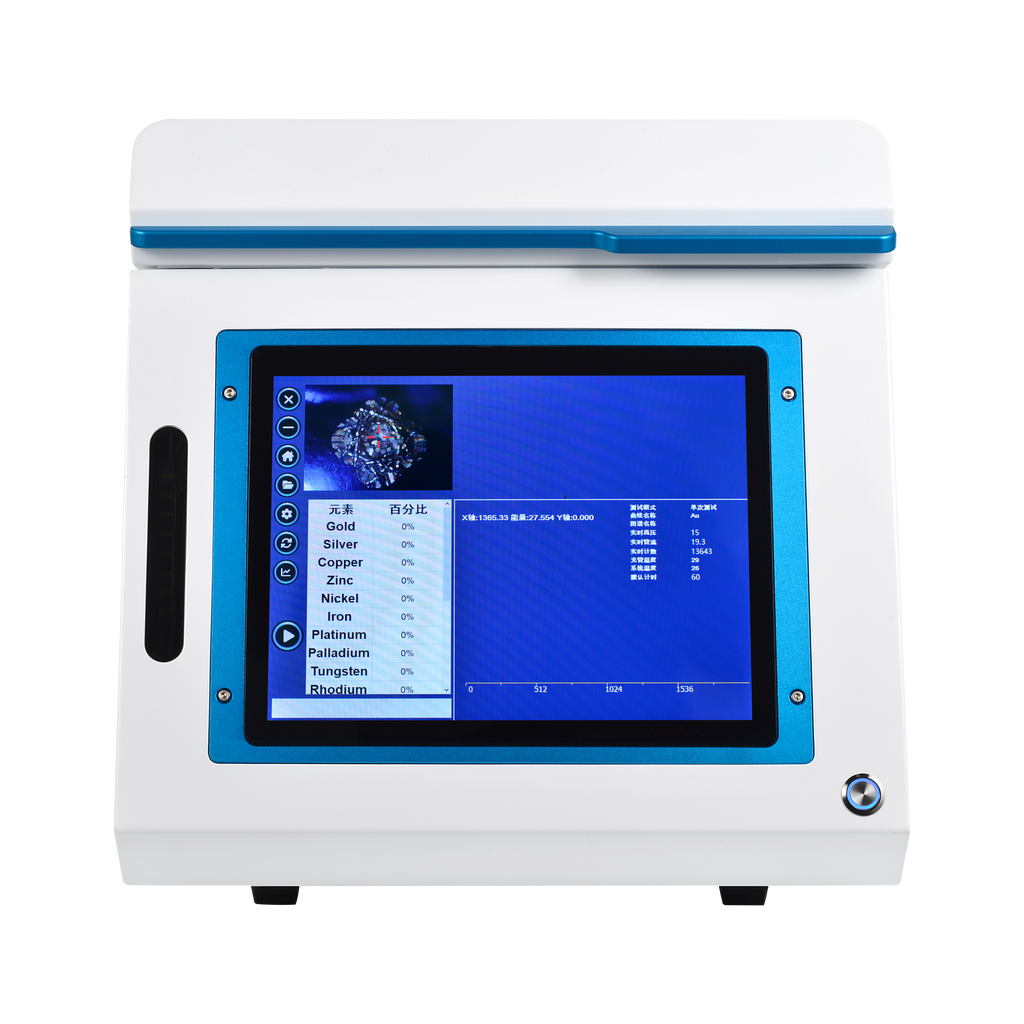

AUTEK-1000 XRF Basic

The AUTEK-1000 XRF Basic is a high-precision instrument designed for rapid and accurate analysis of precious metals in solid samples. Engineered for industrial and laboratory environments, it combines advanced detection technology with simple, intuitive operation to deliver reliable results within seconds.

Key Features

✔ High Sensitivity & Accuracy
With an analysis range of 10 ppm and measurement accuracy of 0.1% (Au ≥ 96%), the AUTEK-1000 XRF Basic ensures dependable quantitative results.

✔ Fast Testing Cycle
Provides results in 40–60 seconds, allowing for efficient, high-volume testing.

✔ Advanced Detection System
Equipped with a gas proportional detector, multi-channel simulation, and selectable customized filters, the system offers optimized element detection for the precious metal industry.

✔ Built-in HD Camera
A high-definition camera enhances visibility of the sample chamber and test process.

✔ Robust Sample Handling
Designed for solid samples, the analyzer features a spacious 320 × 260 × 110 mm chamber suitable for various sample sizes.

Measuring Capability

Ideal for the precious metal industry, it can detect:

• Au (Gold)

• Ag (Silver)

• Cu (Copper)

• Pt (Platinum)

• Pd (Palladium)

• Ir (Iridium)

• Cd (Cadmium)

Power & Construction

• Tube Voltage: 50 KV / 1 mA

• High Voltage Power Supply: 0 – 50 KV

• External Dimensions: 420 × 400 × 420 mm

• Weight: 33 kg

Software & Output

Includes qualitative and quantitative analysis software, making it easy to view, store, and export test data.

Environmental Conditions

Designed for stable performance in:

• Ambient Temperature: 0°C – 28°C

Applications

Perfect for:

• Precious metal recycling

• Jewelry manufacturing

• Hallmarking centers

• Quality control labs

• Industrial alloy verification
